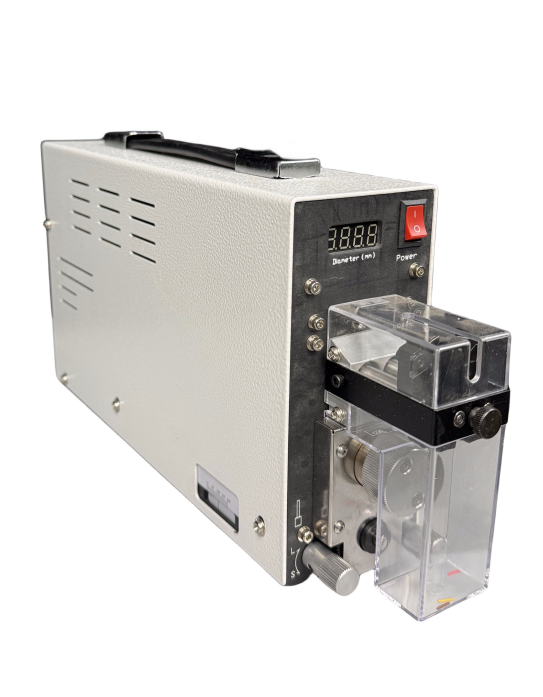

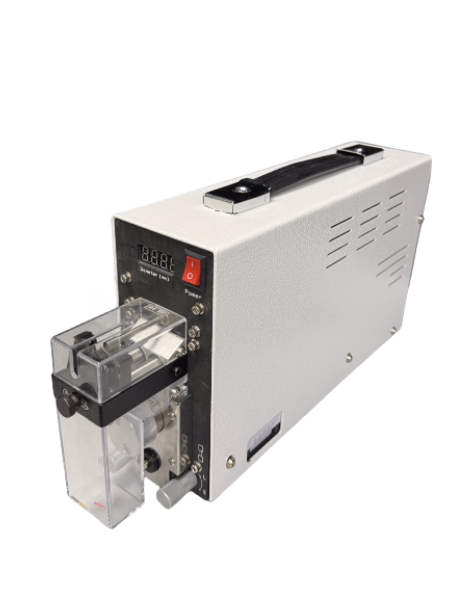

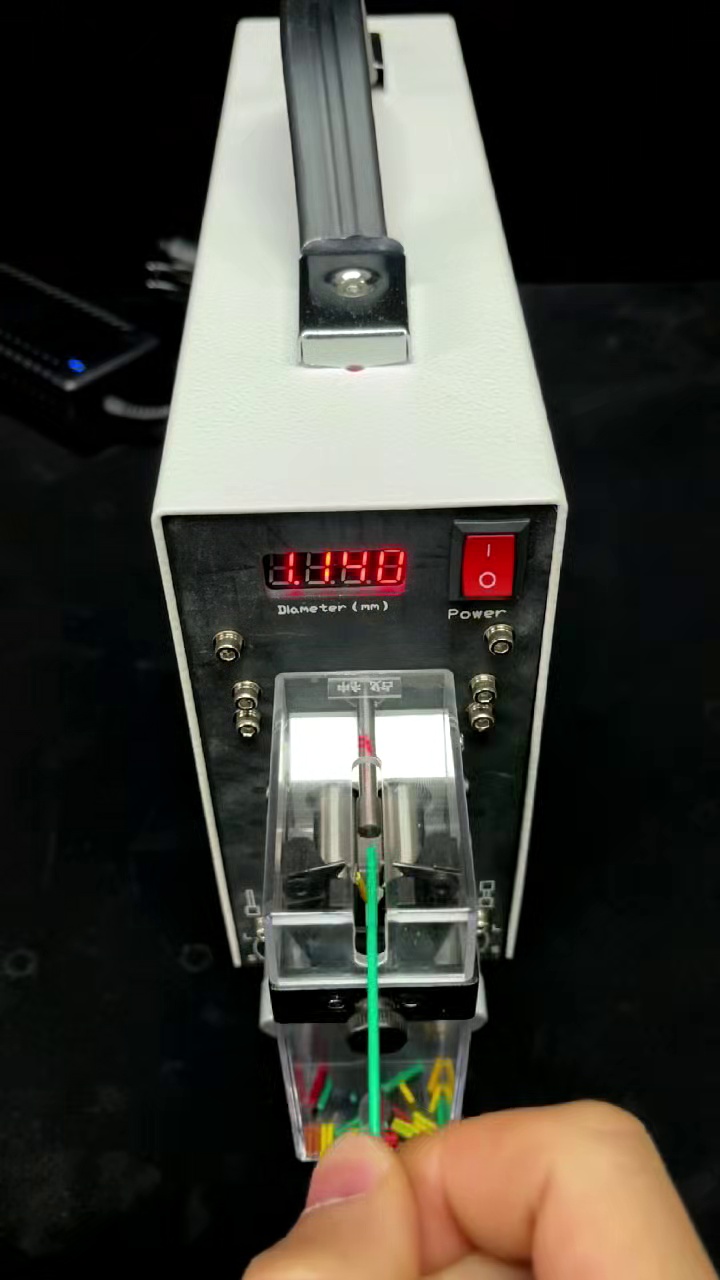

The wire stripper is a compact, high-precision electric wire stripper designed for professional wire processing environments. Featuring sensor-controlled automatic triggering and a universal 90° V-blade design, the machine delivers fast, accurate stripping without requiring tool changes for different wire gauges. Suitable for a wide range of wire types from AWG 32 to AWG 12 (0.03–4.0 mm²), it is ideal for electronics assembly, cable processing, and electrical manufacturing.
Key Features:
✅ Sensor-Triggered Operation – Infrared sensor control eliminates the need for a foot pedal, enabling precise, hands-free activation for improved safety and efficiency
✅ Universal 90° V-Blade Design – Processes different wire diameters without blade changes, maximizing versatility across AWG 32–12
✅ Dial-Knob Adjustment – Strip length, cut depth, half-strip and full-strip modes are all set via graduated dials, no tools required
✅ Full & Half Strip Modes – Supports both complete insulation removal and partial (half-strip) stripping with adjustable retained insulation length
✅ Compact & Portable – At just 2 kg (machine only), operates anywhere with a standard AC power outlet, no compressed air required
✅ Purely Electric – No Pneumatics – Runs on AC 110V/220V, not affected by air pressure variations, reducing dependency on compressor infrastructure
Technical Specifications:
- Wire Cross-Section Range: 0.03 – 4.0 mm² (AWG 32–12)
- Maximum Wire Outer Diameter: 4.2 mm
- Strip Length Range: 1.5 – 20 mm (adjustable)
- Stripping Accuracy: Full strip ± 0.5 mm | Half strip ± 6 mm
- Diameter Setting Precision: 0.01 mm
- Cycle Time: Approx. 0.5 s per cycle
- Trigger Mode: Infrared sensor / Foot pedal (optional)
- Adjustment Method: Graduated dial knobs (no tools required)
- Power Supply: AC 110V / 220V, 50/60 Hz
- Operating Temperature: -5°C to +40°C
- Machine Dimensions (L×W×H): 380 × 85 × 188 mm
- Net Weight: 4.5 kg | Gross Weight: 5.0 kg
Compatible Wire / Cable Types:
Stranded Wire, Solid Core Wire, Single-Strand Twisted Wire, Single-Core Cable, Electrical Wire, Multi-Core Cable, Rubber-Insulated Cable, PUR Jacketed Cable, PVC Insulated Wire, Teflon® Insulated Wire
Operating Notes:
- Suitable for both US and international power markets (110V/220V, 50/60Hz)
- No compressed air or pneumatic supply required — purely electric operation
- Built-in infrared sensor trigger, with optional foot pedal support
- Tool-free adjustment via graduated knob dials
- Compact form factor allows bench-top or portable operation
Ideal for: electronics assembly lines, cable processing facilities, electrical contractors, wire & cable manufacturers, and workshops requiring fast, repeatable, precision wire stripping.
